Hier eine Oldtimer-PA: Eine der ersten Transistor-PA´s aus Mitte der 80er Jahre

Transworld TW500A (Cubic S500A) - USA Californien - Baujahr circa 1986



Die Herstellerfirma:

www.radiomuseum.org/dsp_hersteller_detail.cfm?company_id=16102

Name: Transworld Communications Inc. (Datron); Escondido (CA)    (USA)
Abkürzung: transworld
Produkte: Modell-Typen
Zusammenfassung:

Transworld Communications Inc. (also spelled Trans World)

304 Enterprise Street, Escondido, CA 92925 (1994)
240 Pauma Place, Escondido, CA 92025



Products include HF communication equipment for long range radio communications for military and government application (1986).

Geschichte:

Datron Systems Inc. of California, which manufactures satellite communication, radar and telemetry systems, has acquired Transworld Communications Inc. of Escondido, California. [Jane's Defence Weekly, 1986] The company remained as a division of Datron until at least 1995.

In 2001, they are listed as Datron World Communications, Inc. as a subsidiary of Datron Systems, Inc., with the trade name TransWorld.



Hier die technischen Unterlagen für Interessierte

Video-Link zu TRX-Bench: Detaillierte Vorstellung der Endstufe im ersten Teil des Videos

www.youtube.com/watch?v=YhTwBK3xlLU

Bilder aus dem Inneren der 35 Jahre alten Endstufe mit bipolaren Transistoren

Main-Board - links Bandpassfilter, rechts die vier Verstärkerstufen mit je zwei bipolaren Transistoren
Bandpass-Filter
Verstärkerstufen
Transistoren, Ein- und Ausgangstrafo

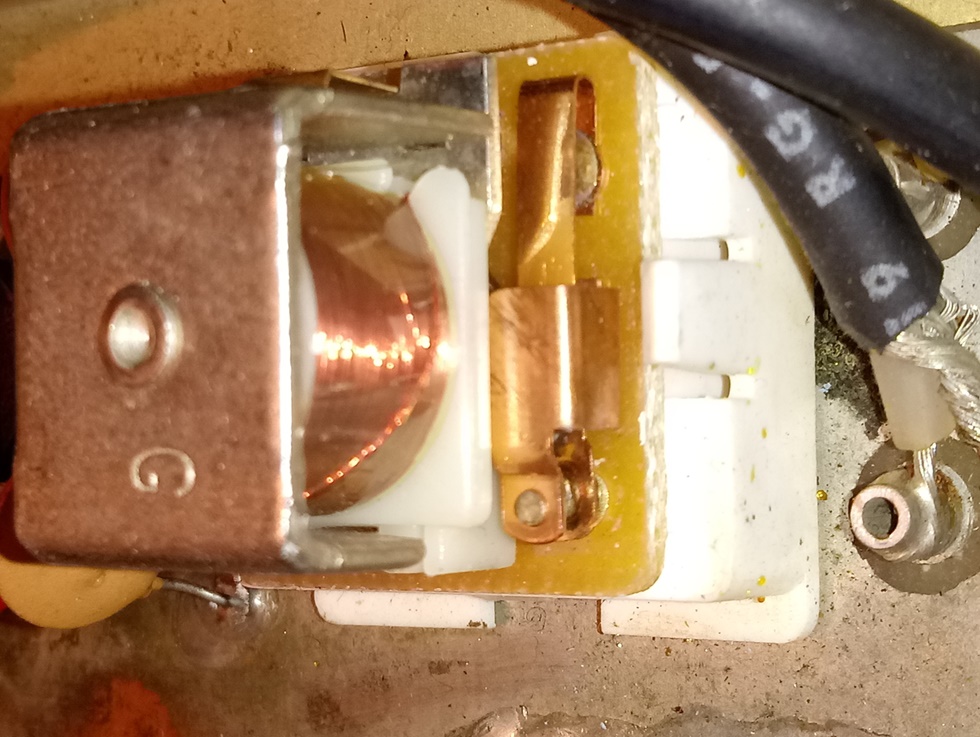

Relais Sende- Empfangsumschaltung
Rechts Drahtpoti für Ruhestromregelung
Splitter
Combiner
Relais

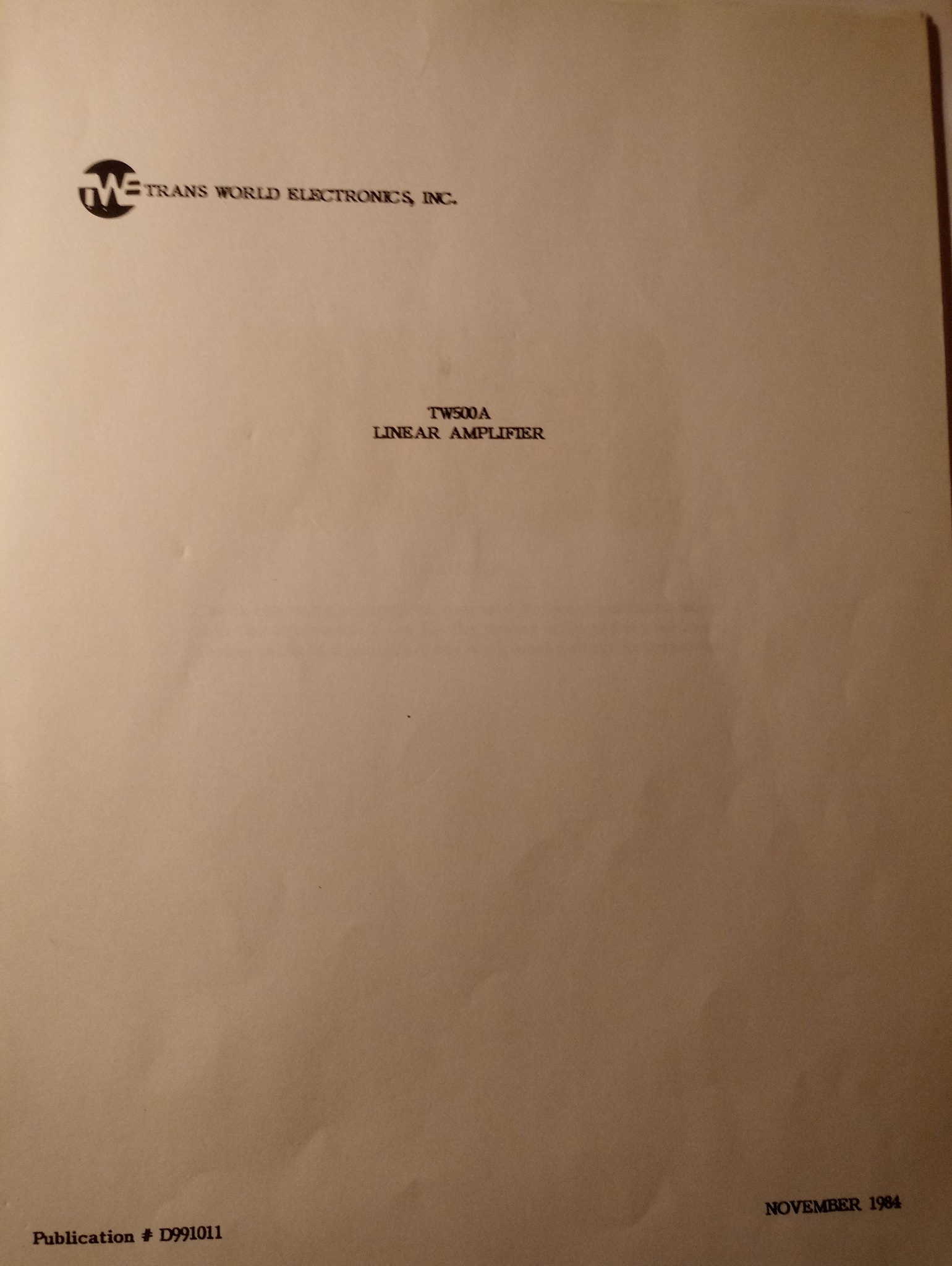

Auszüge aus dem Manual

Technische Daten
